ZYXEL

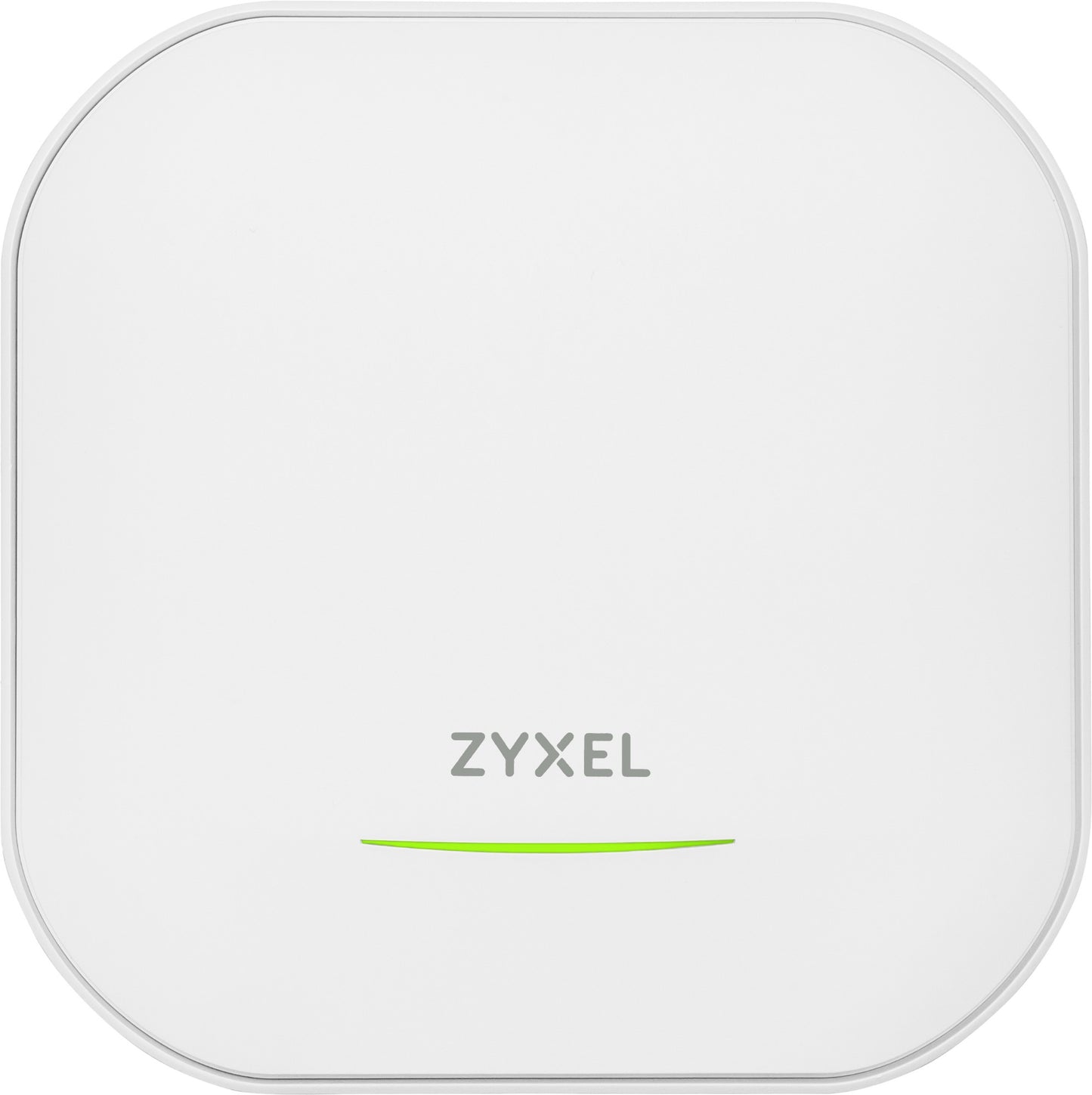

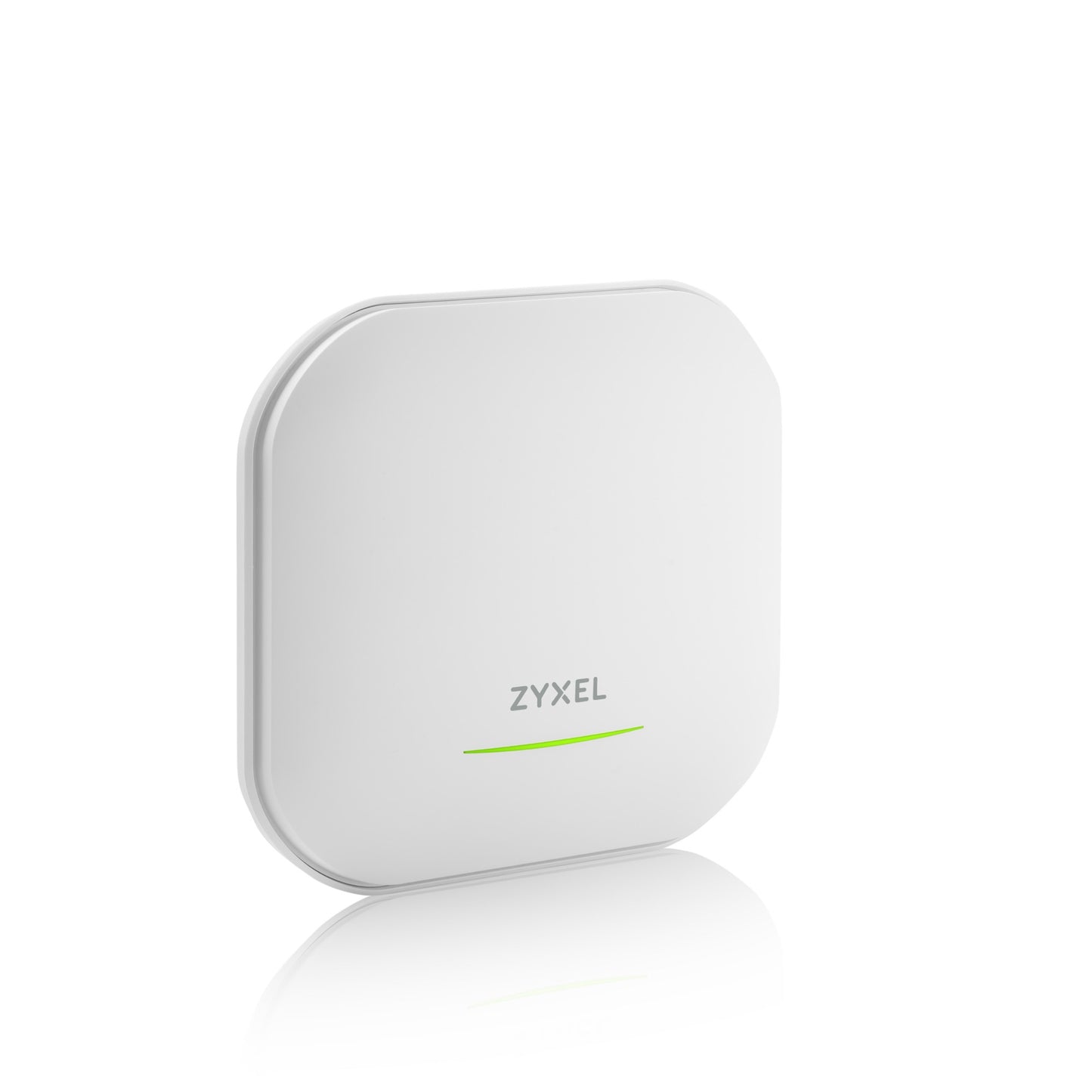

NWA220AX-6E-EU0101F Zyxel AXE5400 WiFi 6E Dual-Radio NebulaFlex Access PointWhite Power over Ethernet (PoE)
NWA220AX-6E-EU0101F Zyxel AXE5400 WiFi 6E Dual-Radio NebulaFlex Access PointWhite Power over Ethernet (PoE)
Regular price
POA
Regular price
Sale price
£0.00 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Delivering up to 5.4Gbps speed, the Zyxel NWA220AXE-6E is fully equipped with the next-gen WiFi 6E technology for ultra-fast speeds and low-latency connections.
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 4800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Bandwidth | 0.16 GHz |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 4800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth | |
| Bandwidth | 0.16 GHz |
| Management features | |
| VLAN support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth | 0.16 GHz |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 4800 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Security | |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | 802.1x RADIUS, EAP, WEP, WPA, WPA2-PSK, WPA3, WPA3-Enterprise |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Output voltage | 12 V |
| Output current | 2 A |
| Power supply | 21 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Indication | |
| LED indicators | Yes |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Weight | 650 g |
| Height | 42 mm |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
